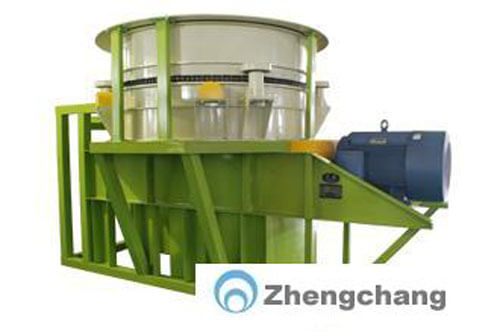

SFSP Series Circular Forage Grinder
SFSP Series Circular Forage Grinder
1. Feeding through turning top part,cooperating with conveyor, high degree of automation.
2. With embedded widened rotor,ultra-thick wear resistant hammer,equal grinding.
3. Use snake-typ...
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL: 0086-21-64184200
- FAX: 0086-21-64163299
- E-mail: internet@zcme.com
1. Feeding through turning top part,cooperating with conveyor, high degree of automation.
2. With embedded widened rotor,ultra-thick wear resistant hammer,equal grinding.
3. Use snake-type spring coupling,large transfer torque,reducing vibration greatly.
4. Grind straw and weed, wide applicability.
5. The main bearing use imported high quality SKF bearing with long useful life.
6. Use high balance precision rotor, balanced drive and low noise.
2. With embedded widened rotor,ultra-thick wear resistant hammer,equal grinding.
3. Use snake-type spring coupling,large transfer torque,reducing vibration greatly.
4. Grind straw and weed, wide applicability.
5. The main bearing use imported high quality SKF bearing with long useful life.
6. Use high balance precision rotor, balanced drive and low noise.
| Categories Names of series | SFSP65 | |
| Type Model | 65*82 | 65*128 |
| Rotor diameter（mm） | 654 | |
| Width of grinding chamber（mm） | 826 | 1282 |
| Hammer line speed（m/s） | 51 | |
| Main motor power （KW） | 75/90 | 110/132/160 |
| Output（t/h） | 4-9/5-12 | 6-14/7-16/8-18 |
| Diameter of sieve plate（mm） | Ø76 | |
| Main shaft speed（r/min） | 1480 | |
